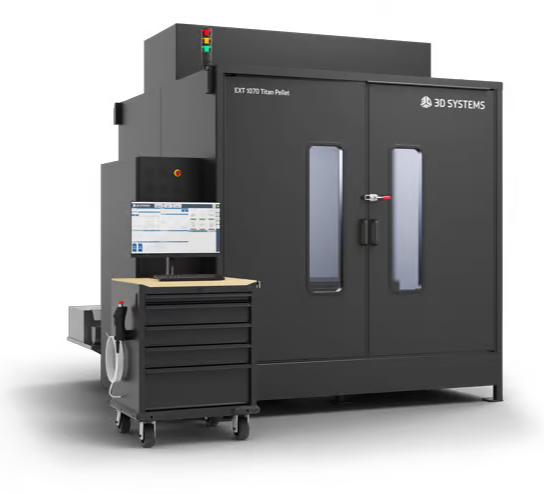

EXT 1070 Titan Pellet

Shorten Lead Times

Print fast with pellet extrusion on the EXT 1070, up to 10X faster compared to traditional filament extrusion 3D printing.

Reduce Costs

Save money with pellet extrusion 3D printing using affordable thermoplastic pellets, up to 10X lower cost compared to traditional filament 3D printing feedstocks.
Print Full Scale

The EXT 1070’s build volume of 1070mm x 1070mm x 1118mm (42”x42”x44”) enables production of full-scale medium-to-large size parts with no need for gluing pieces together.

The base unit includes a single pellet extruder but can be equipped with up to three toolheads including a second pellet extruder, a filament extruder and a 3-axis CNC spindle. The EXT 1070 is ideal for medium-to-large part production, with applications from tooling and patterns to end-use parts.

Purpose Built. Production Ready.

The EXT 1070 Titan Pellet is a proven production additive manufacturing system for applications including patterns, molds, tooling, jigs, fixtures, end-use parts, and full-scale prototypes. Industries taking advantage of Titan technology include foundry, automotive, aerospace and defense, consumer products, and more.

Built with a welded steel frame and an industrial actively heated enclosure, the EXT 1070 is ready to produce functional, high-performance parts on the factory floor. The modular toolhead system enables customers to add a second pellet extruder, filament printing capability and/or CNC milling functionality either with initial machine purchase or after.

Pellet Extrusion on the EXT 1070

3D print with a wide range of pellet materials, from commodity feedstocks to high-temperature, high-performance materials including CF-PEI, GF-PEKK, and GF-PC. Direct pellet-fed 3D printing on the EXT 1070 also enables the use of highly flexible elastomers and high-percentage glass and carbon-filled materials. Pellet 3D printing reduces material cost by up to 10X with up to 10X higher deposition rates when compared to filament printing.

See the full list of pellet materials available

Hybrid Manufacturing on the EXT 1070

The EXT 1070 Titan Pellet incorporates our proven pellet extrusion system and may be equipped with additional toolheads on the same gantry. Adding a filament extruder or second pellet extruder enables high-speed multi-material printing. The CNC spindle toolhead allows true hybrid manufacturing, machining 3D printed parts both during and after the printing process. Taking production additive manufacturing to the next level, the EXT 1070 shortens cycle times and produces smooth, accurate end-use 3D printed parts.

Production Manufacturing with the EXT 1070

Reliable 3D Printing Production

The EXT 1070 Titan Pellet’s industrial motion control system increases up-time and reliability with a CNC controller, closed-loop system with servos on all axes, and remote monitoring capabilities.
Built for the Factory Floor

With a welded steel frame that is precision machined, the EXT 1070 is a production-proven additive manufacturing system. The actively heated and insulated industrial enclosure with door interlock makes it ready for any production environment.
Open Architecture for More Control

Manufacturers can choose the right materials for their applications, with hundreds of grades of open-market pellet materials available for use on the EXT 1070. Printing and milling parameters can be dialed-in to optimize serial production applications.

EXT 1070 Titan Pellet Specifications

Build Volume
EXT 1070 Titan Pellet
Print	1070mm X x 1070mm Y x 1118mm Z (42”x42”x44”)
Cut	1041mm X x 990mm Y x 990mm Z (41″ x 39″ x 39″)
EXT 1070 Titan Pellet LT
Print	1070mm X x 1070mm Y x 1219mm Z (42”x42”x48”)
Cut	N/A

Toolhead Configurations
EXT 1070 Titan Pellet
One Toolhead (Standard)	Pellet Extruder
Two Toolheads	Dual Pellet Extruders, Pellet + Filament Extruder, Pellet Extruder + Spindle
Three Toolheads	Pellet Extruder + Filament Extruder + Spindle, Dual Pellet Extruders + Spindle
EXT 1070 Titan Pellet LT*	*Not compatible with dual pellet or spindle toolhead configurations
One Toolhead (Standard)	Pellet Extruder
Two Toolheads	Pellet Extruder + Filament Extruder
Three Toolheads	Pellet Extruder + Dual Filament Extruders

Temperatures
Pellet Extruder	400°C
Filament Extruder	400°C
Bed	140°C
Enclosure	80°C

Spindle Features
Speed	18,000 RPM (1.5HP)
Tool Size	Up to 1/4″ diameter, 4″ length
Tool Calibration	3-axis sensor configuration

Extrusion Capabilities
Pellet Nozzle Diameters	0.6 mm – 9.0 mm
Pellet Layer Heights	0.4 mm – 6.0 mm
Pellet Extruder Throughput	.45kg – 13.6kg* (1lb – 30lbs*) per hour
Filament Nozzle Diameters	0.4 mm – 1.2 mm
Filament Layer Heights	0.15 mm – 1.0 mm
Filament Throughput	<.45kg – .9kg (<1lb – 2lbs) per hour

^*Max flow rate with 9 mm nozzle

Control System
Motion Controller	CNC Controller
Drives	Servos on all axes
Print Speeds	Up to .5m/sec
Slicing Software	Simplify3D

System Requirements
Power Input	208V Three Phase 60A
Machine Weight	2041kg (4500lbs)
Machine Footprint	2.4m x 2.1m x 2.6m (8′ x 7′ x 8.6′)
