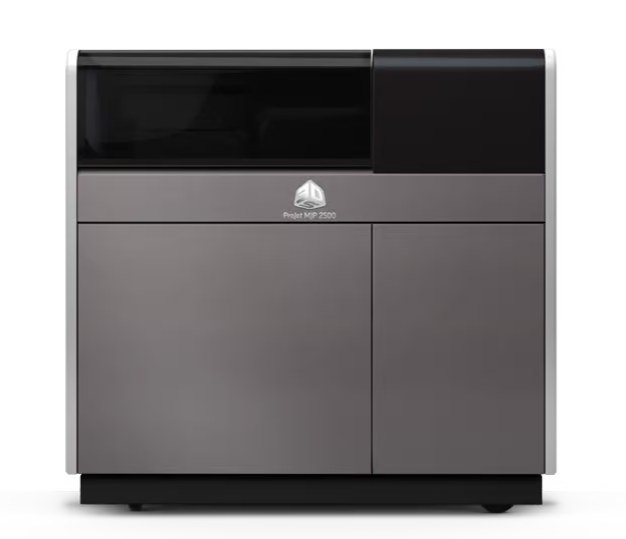

ProJet MJP 2500/2500 Plus

The ProJet MJP 2500/2500 Plus are advanced 3D printers from 3D Systems, designed to provide high-quality MultiJet Printing (MJP) for professional environments. These printers are known for their precision, reliability, and ease of use, making them ideal for rapid prototyping, functional testing, and the creation of complex parts with detailed geometries. Below is an overview of the specifications and features for the ProJet MJP 2500 and 2500 Plus:

Overview of ProJet MJP 2500/2500 Plus:

1. Technology:

• 3D Printing Technology: MultiJet Printing (MJP)
• Print Method: Utilizes a piezoelectric print head to deposit micro-droplets of photopolymer materials layer by layer, followed by UV curing.

2. Build Volume:

• ProJet MJP 2500: Approximately 294 x 211 x 144 mm (11.6 x 8.3 x 5.7 inches)
• ProJet MJP 2500 Plus: Same build volume as the 2500 but with enhanced material capabilities.

3. Resolution and Accuracy:

• Print Resolution: Up to 800 x 900 dpi (X/Y resolution)
• Layer Thickness: Ranges from 16 to 32 microns, allowing for fine detail and smooth surface finishes.
• Accuracy: High precision with part accuracy typically within ±0.1 mm or ±0.002 mm per mm of part dimension.

4. Materials:

• Material Options:
  • Rigid Plastic Materials: For creating durable parts.
  • Elastomeric Materials: For flexible and rubber-like parts.
  • Specialized Materials: For clear and biocompatible applications (2500 Plus model).
• Support Material: Wax-based support material that is easy to remove with simple melting or a dissolution process, enabling the creation of complex structures with fine details.

5. Surface Quality:

• Surface Finish: Smooth, high-quality finish with minimal post-processing required.
• Post-Processing: Parts are ready for use after the removal of support material, with no sanding or polishing needed in most cases.

6. Speed:

• Print Speed: Optimized for high throughput, making it suitable for office-friendly environments that require efficient production times.
• Multi-Part Capability: Ability to print multiple parts simultaneously, maximizing productivity.

7. Software Integration:

• Software: Comes with 3D Sprint software for seamless print job preparation and management.
• File Formats: Supports standard 3D file formats including STL, OBJ, and 3MF.
• User-Friendly Interface: Simple drag-and-drop features for easy part placement and orientation.

8. User Interface and Control:

• Control Panel: Equipped with an intuitive touch-screen interface for easy navigation and printer control.
• Remote Monitoring: Option for job status tracking through connected devices, enhancing workflow efficiency.

9. Applications:

• Functional Prototypes: Produces high-fidelity models that can be used for design validation and fit testing.
• Detailed Parts: Ideal for complex geometries with intricate details such as medical models, electronic housings, and consumer product designs.
• Casting Patterns: Can be used to create investment casting patterns with excellent precision and surface quality.

Key Differences Between ProJet MJP 2500 and 2500 Plus:

• Material Capabilities: The 2500 Plus model supports a broader range of materials, including biocompatible and transparent materials for more specialized applications.
• Performance: The 2500 Plus offers faster print times and additional material options, making it suitable for users who need enhanced versatility and speed.

Key Advantages:

• High Precision and Detail: Produces highly accurate and finely detailed parts suitable for prototypes and end-use applications.
• Ease of Use: User-friendly software and minimal post-processing make the ProJet MJP 2500/2500 Plus easy to operate in a professional setting.
• Reliability: Proven MultiJet Printing technology ensures consistent performance and dependable output quality.
• Support Removal: The wax-based support material is easy to remove, reducing the time and effort needed for post-processing.

The ProJet MJP 2500/2500 Plus series offers a powerful and versatile solution for professionals seeking high-resolution, accurate, and reliable 3D printing for prototyping and production purposes. The ability to handle a variety of materials and produce parts with exceptional detail makes these printers a valuable asset in design and manufacturing workflows.
